Abstract

Urban Transitions: Transit Oriented Development

I am studying four locations in New York City so that I understand how the subway impacts transitions in order to understand how to develop transit oriented developments. My research focuses on how the New York City subway stations impact urban transitions around them. Additional, my research looks into how the urban transition impacts the particular subway station. It is in my interest to conclude from my research that either the presence of the subway system is one reason for the urban transition or it is the urban transition that gives reason for the subway station.

To conduct my research, I looked at four areas within New York City: Columbus Circle, Atlantic Yards, Times Square, and the High line. Here I compared the history of the place’s development and subway stations to what they are today. From there, I took note of activity zones, access points of the subway system, and subway station within the area of transition; most importantly, whether the area had a subway station at all.

My results show that major activity zones occur within the boundaries that the subway access points create or the subway stations themselves create. In the case of New York City’s subway, not much has changed as far as station stops but there have been changes as far as access and usage of the station. I conclude that it is the transition that influences the subway, but it is the subway that gives some reasoning for the transition.

The High Line: Success

In my research, I take into account how efficient the development is with or without a subway station. In the case of the High Line, I find it to be a very popular and efficient place even without having a subway station. During my time there, I found it to be very busy throughout the day. While sitting in a restaurant just outside the High Line, I noticed large crowds would walk through about every 5 to 10 minutes. There would also be groups of people attempting to enter the exits. In the diagram below, I observed the following:

• the green spots being popular gathering places within the High Line
• the red being popular activity zones within the neighborhood

diagram by blogger

The High Line: Access Points

diagram by blogger



The are no plans for a future subway station specifically for the High Line but there are several lines that provide access. In the map above, entries and exits of the High Line are strategically placed in direct route to the subway stations just 2-3 blocks away. The access points are as follows:

• Gansevoort Street
• 14th Street (elevator access)
• 16th Street (elevator access)
• 18th Street
• 20th Street
• 23rd Street (elevator access coming soon)
• 26th Street
• 28th Street
• 30th Street (elevator access)

Public Transportation stops are listed as well...

Subway

• L / A / C / E to 14th Street & 8th Avenue
• C / E to 23rd Street & 8th Avenue
• 1 / 2 / 3 to 14th Street & 7th Avenue
• 1 to 18th Street & 7th Avenue
• 1 to 23rd Street & 7th Avenue

 Bus

• M11 to Washington Street
• M11 to 9th Avenue
• M14 to 9th Avenue
• M23 to 10th Avenue
• M34 to 10th Avenue

The High Line: Subway Stations

map from High Line official website

The High Line is the only area that does not have a direct subway station.Two blocks east is the A, C, E, & L line, Three blocks east is the 1, 2, & 3 line; all located at the ends of the High Line. The C, E, & 1 line can be accessed from the middle of the High Line.

The High Line: Now

Today, the High Line has become an one and half mile elevated park; which is in the process of being completed. With inspiration from Promenade Plantee and Millennium Park, the park is an integrated landscape consisting of a staggered concrete pathway, plants that bloom year-round, lighting, seating, and gathering spots. It is used by locals, tourist, and even some celebrities.

photo by blogger

photo by Earth Phtotography, Peter Visontay

The High Line: Early Days

The High line was originally a transition of Manhattan's railways. It was constructed in the 1930's to elevate freight trains above street level, eliminating 105 railroad crossing at street level. The 13 mile line ran from 34th Street to St. John's Park Terminal, Spring Street. The railway ran within the blocks oppose to along the avenue to avoid interference with elevated subways. The trains pierced through buildings,entering directly into factories and warehouses.

This is a file from the Wikimedia Commons

The High Line: Research Significance

The High Line is an area where the dominant form of transportation is not clear. Taking note that there is no subway station for the specific location, one assumes that not many would use the subway to get there. However after mapping the closes stations, it can be said that the subway is a commonly used mode of transportation to the High Line. Counting the number of patrons using a particular station would provide the quantity of its use, but would not show the quantity using it for the High Line. Therefor this area would be significant in analyzing the question of my research.

Times Square Subway Access Points

map from Times Square Official Site with edits done by blogger

Subway Stations & Activity Zones in Times Square

There are seven subway stations in Times Square. The majority of development are within the boundaries that six of seven stations create; the highest activity zone being in the center of the boundary.

Times Square: Now

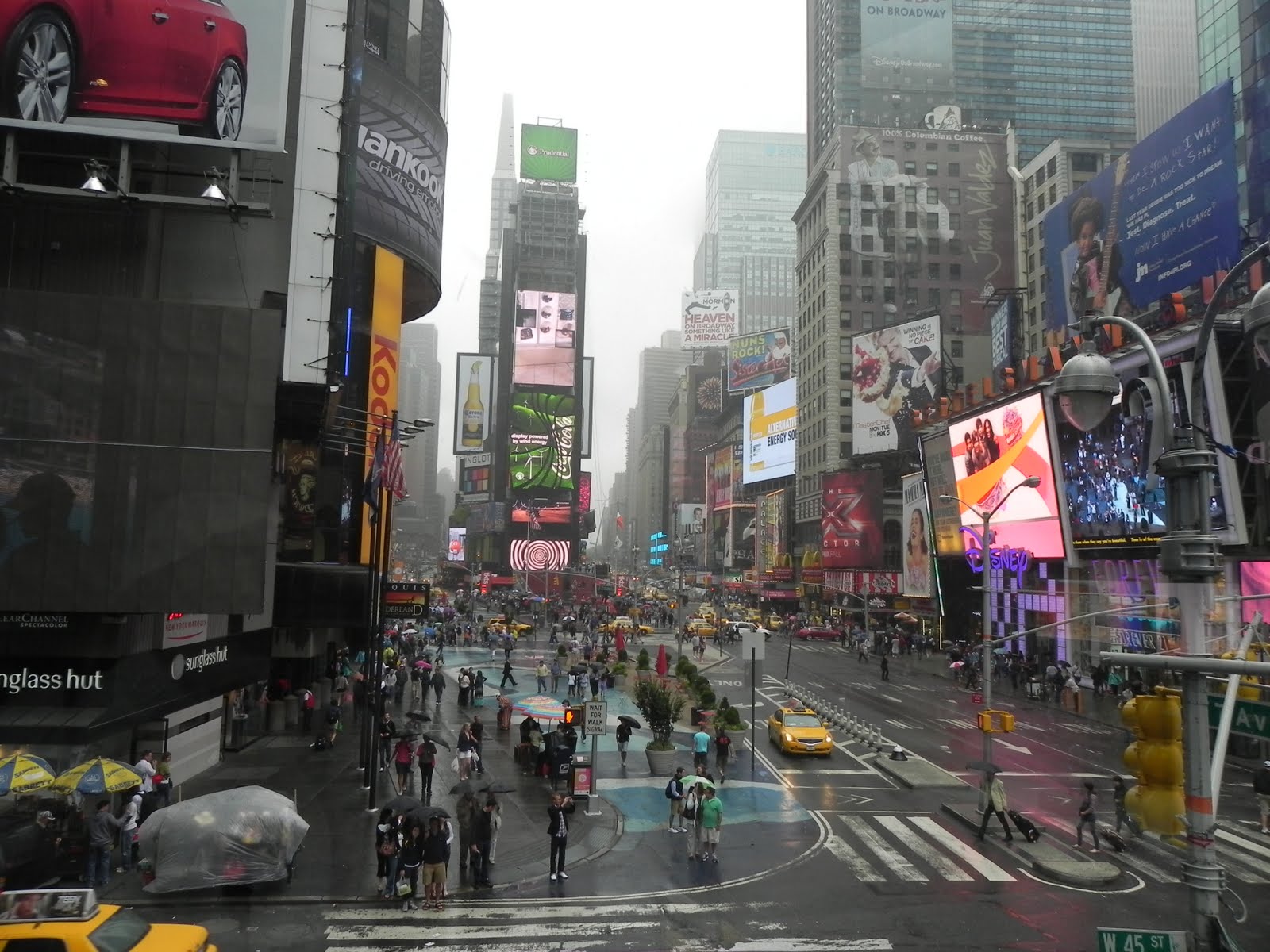

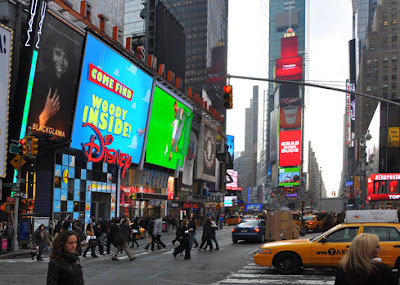

Today, one can find Times Square in the midst of another transition as Disney has made it presence. Still a tourist spot, the presence of Disney has made the area more family oriented, with fun for all. In the past years, Times Square has become more crowded than ever. As a result, the city has made efforts to promote more pedestrian traffic and decrease vehicular traffic. The result may lead to an increase in the use of the Times Square Station.

Times Square: Transition Three

In the 1990's Mayor Giuliani made the efforts to clean up the area by replacing sex shops and theatres with tourists attractions as well as an increase in security. The increase in franchises within the area made the area a family and tourist oriented place; resulting in an increase in tourism, value, etc. as well as use of the Times Square subway station. Today, one will find subway entrances that differ from the traditional globe lamp entrances.

Times Square: Transition One

"It also created the city's first twentieth-century social and cultural center. The opening of the IRT stop at 42nd Street between Broadway and Seventh Avenue coincided with the New York Times's breaking ground on construction of its highly anticipated skyscraper headquarters. The two events combined to reconfigure Manhattan's midtown boulevard into a crossroads of recreation and commerce the likes of which had never before been seen in America." 1

image from New York Architecture

Times Square is an area in which a major transition occurred as a result of the subway station as well as the new Times Building. The transformation was sparked by the rapid change already occurring within Manhattan's neighborhoods. It was not until 1904 when the New York Times moved their headquarters to 42nd Street when the transition began. Aldolf S. Ochs, publisher of the New York Times, convinced the mayor to put a subway stop there naming it Times Square after the New York Times (at the time being a local stop in the subway system). In the years to follow, more theaters, music halls and other businesses as well as electric billboards moved into the area turning Times Square into cultural hub.

image from New York Architecture

1. A quote from "Down 42nd Street: Sex, Money, Culture, and Politics
at the Crossroads of the World"
by Marc Eliot

Long Acre Square to Times Square

photos from Shorpy Vintage Photo Blog

Prior to 1904, Long Acre Square was a carriage-making district that later came to have a reputation as a low entertainment district. After the move of the Times building and becoming Times Square, the area transformed into a popular entertainment center. Times Square underwent its share of pitfalls and upbringings. Today, it has been overtaken by Disney being a place of entertainment and commerce.

New Station at Atlantic Yards

diagram by blogger

The Barclay Center development proposes a new subway station will be added, Atlantic Avenue Barclays Center Station. The new station will service the 2, 3, 4, 5, B, & Q lines. Additional, with the proposal of new development, one can assume that the activity zones will shift as diagrammed above.

image and animation below from Barclays Center website

Atlantic Yards: The Future

image from Barclays Center website

With the completion of the Barclays Center, the Atlantic Yards area of Brooklyn will no longer be just for locals but it will be a place for people of New York, New Jersey, and all visitors. In the development, a new station will arise, Atlantic Yards Barclays Center, which connects 9 lines and the LIRR becoming one of the most accessible venues in New York.

"No matter where you are in metro New York, you’re just minutes away from the excitement of the Barclays Center."

video and quote from Barclays Center Website

Atlantic Yards: Current Subway Stations & Activity Zones



diagram by blogger

Currently, the major activity zones occur within the Atlantic Center mall and along Flatbush Avenue. With future development of Atlantic Yards, the activity zone will shift using Atlantic Avenue as the datum.

Atlantic Yards: Significance Now

Currently, Atlantic Yards is an undevelopment area. The locals of Brooklyn conveniently has a place to shop at the mall nearby. It also has two subway stations which sole purposes are to allow the residents travel in and out the neighborhood. They do not serve as major stations for getting patrons to "tourist" spots like Times Square.

Proposed Atlantic Yards

Atlantic Yards is currently proposed to be a mixed-use development which contains both residential and commercial spaces. It will also include a sports and entertainment venue as well as green space. Located at Atlantic Avenue and Flatbush Avenue, the site spans 22 acres over the original Vanderbilt Rail Yards.

The project is set to include:

• a sports and entertainment venue of 675,000 sq.ft.
• retail space of 247,000 sq.ft.
• office space 336,000 sq.ft.
• hotel of 165,000 sq.ft.
• affordable and market-rate housing of 6.36million sq.ft.
• an art venue
• eight acres of open space

This particular area would be significant in my research explaining whether it is the development that has influence on the subway or if it is the subway that has some kind of impact on the development.
